Introduction

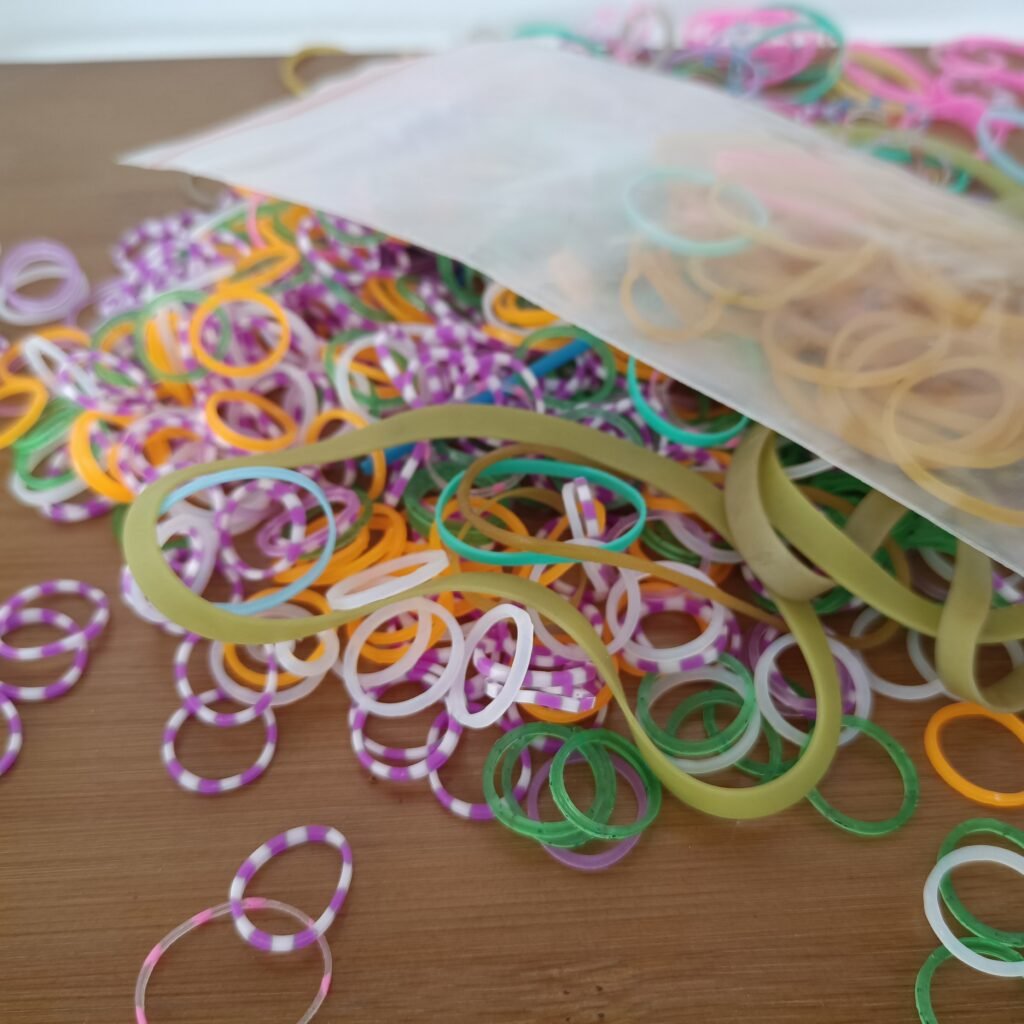

TPR (Thermoplastic Rubber) is a versatile material widely used in the production of elastic bands for medical, automotive, and consumer goods industries. This comprehensive guide explores the operational principles, production processes, maintenance requirements, and after-sales support for TPR rubber band extruders.
1. Working Principles of TPR Extruders
1.1 Material Melting System
- Temperature Control:
- Optimal processing range: 180-220°C
- Barrel divided into 4-6 heating zones with PID controllers
- Screw Design:
- Compression ratio 2.5:1-3.5:1
- Special barrier section prevents material degradation
1.2 Extrusion Mechanism
- Melt Pump Technology:
- Maintains 30-80 bar pressure stability
- Ensures uniform die output (±0.5mm tolerance)
- Die Geometry:
- Precision machined for 0.8-3mm band thickness
- Multi-lane configurations for high productivity
1.3 Cooling & Shaping
- Water Bath Cooling:
- Temperature controlled at 15-25°C
- Flow rate 5-10 L/min per extruder line
- Air Blowing System:
- Surface drying before cutting
2. Production Process Flow
2.1 Raw Material Preparation
- Material Mixing:
- TPR pellets blended with:
- Plasticizers (5-15%)
- Antioxidants (0.2-0.5%)
- Color masterbatch (1-3%)
- TPR pellets blended with:
- Drying Requirements:
- Moisture content <0.1%
- Desiccant dryers used for 4-6 hours
2.2 Extrusion Process
- Melt Filtering:
- 40-80 mesh screen packs
- Automatic backflush system optional
- Die Calibration:
- Laser alignment for ±0.02mm precision
2.3 Post-Processing
- Cutting System:
- Rotary knife speed 100-300 RPM
- Length accuracy ±1mm
- Quality Control:
- Tensile strength testing (20-30 MPa)
- Elongation at break (300-500%)
3. Critical Processing Parameters
3.1 Temperature Management
| Zone | Temperature Range | Function |
|---|---|---|
| Feed Zone | 160-180°C | Initial softening |
| Compression Zone | 190-210°C | Melting and mixing |
| Metering Zone | 200-220°C | Viscosity stabilization |
| Die | 190-210°C | Shape retention |
3.2 Screw Speed Optimization
- Standard RPM: 50-120
- High-Shear Materials: Reduce to 30-60 RPM
- Torque Monitoring: <85% of maximum capacity
3.3 Material Residence Time
- Ideal range: 2-4 minutes
- Over-residence causes cross-linking and brittleness
4. Preventive Maintenance Schedule
4.1 Daily Tasks
- Clean die plate with soft brush
- Check water flow pressure (3-5 bar)
- Inspect belt tension (deflection <5mm)
4.2 Weekly Tasks
- Lubricate gearbox (ISO VG 220 oil)
- Calibrate temperature sensors (±2°C accuracy)
- Replace air filters
4.3 Monthly Tasks
- Inspect screw wear (flight depth loss <1mm)
- Test emergency stop system
- Service chiller unit
4.4 Annual Overhaul
- Refurbish barrel interior
- Replace all seals and gaskets
- Upgrade control software
5. After-Sales Service Offerings
5.1 Technical Support
- 24/7 remote diagnostics via IoT connectivity
- On-site service within 48 hours (continental US)
- Operator training programs (basic to advanced)
5.2 Spare Parts Management
- Stock of critical components:
- Screw assemblies (3 types)
- Die plates (5 standard sizes)
- Cutting blades (carbide-tipped)
- Express delivery options (24-hour shipping)
5.3 Process Optimization
- Performance audits to improve output by 10-15%
- Energy efficiency analysis (target 15% reduction)
- Custom material formulation support
6. Common Issues & Solutions
| Problem | Root Cause | Solution |
|---|---|---|
| Brittle Bands | Overheating | Reduce zone 3 temperature by 10°C |
| Uneven Thickness | Die misalignment | Laser-align die plates |
| Low Output | Screen pack blockage | Increase backflush frequency |
| Surface Roughness | Insufficient cooling | Increase water flow rate by 20% |
7. Industry Compliance & Standards
- ISO 9001: Quality management
- ISO 14001: Environmental compliance
- FDA 21 CFR Part 177: Food contact applications
- EU REACH Regulation: Chemical substance compliance
8. Future Innovations
- AI Process Control:
- Predictive analytics for parameter adjustments
- Eco-Friendly Solutions:
- Bio-based TPR processing capabilities
- Modular Design:
- Quick changeover between different band sizes
Conclusion
TPR rubber band extruders require precise control over temperature, pressure, and material properties to produce high-quality elastic products. Regular maintenance, adherence to safety protocols, and leveraging professional after-sales support are critical for maximizing equipment lifespan and operational efficiency. As the demand for sustainable materials grows, these machines will continue to evolve with advanced technologies.
